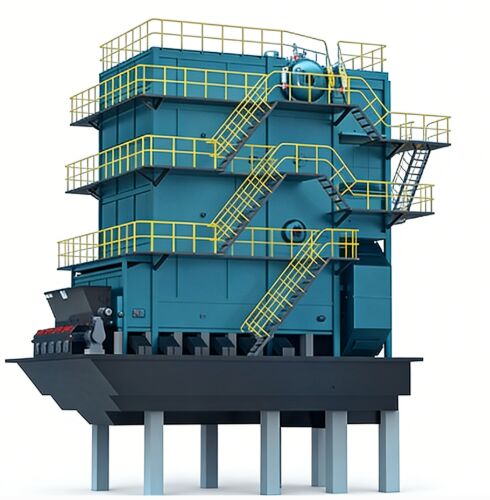

10-75 T/H Water Tube Steam Boiler With PLC Automatic Control System

مقدار حداقل تعداد سفارش :	1	قیمت :	قابل مذاکره
جزئیات بسته بندی :	روش های بسته بندی متفاوتی با توجه به شیوه های مختلف حمل و نقل اتخاذ می شود.	زمان تحویل :	30 روز
شرایط پرداخت :	L/C، D/A، D/P، T/T

محل منبع:	چین	نام تجاری:	Xinjie

اطلاعات تکمیلی
ظرفیت تبخیر نامی:	10 تا 75 تن در ساعت	راندمان حرارتی:	≥ 82٪ - 90٪
ساختار دیگ بخار:	لوله آب افقی دو درام	دمای گاز دودکش:	130 - 180 ℃
انتشار:	≤ 50 mg/Nm³	سطح گرمایش دیگ:	300 - 2000 متر مربع
سیستم کنترل:	سیستم کنترل اتوماتیک PLC	فشار بخار نامی:	1.25 - 9.8 مگاپاسکال
دمای آب تغذیه:	104 - 150 ℃	نوع سوخت:	زیست توده، زغال سنگ، خرده چوب، پوسته برنج
برجسته کردن:	75 T/H water tube steam boiler,10 T/H water tube steam boiler,10 T/H biomass boilers , 10 T/H water tube steam boiler , 10 T/H biomass boilers

توضیحات محصول

SHL Series Assembly Water Tube Steam Boiler

The SHL Series Biomass Boiler features a horizontal assembly structure with chain grate system, designed for efficient combustion of biomass fuels including wood chips, rice husk, and agricultural waste. The water tube configuration maximizes heating surface area, enhancing heat exchange efficiency and steam output. Manufactured with high-quality steel and advanced welding technology, this boiler ensures exceptional durability and performance under high temperature and pressure conditions.

Applications

Industrial Heating: Widely used in food processing, pulp and paper production, and chemical manufacturing for heating requirements, delivering energy cost savings while reducing carbon emissions and environmental impact.
Waste Treatment: Processes agricultural waste, tree pruning, crop straw, rice husks, peanut shells, sugarcane residue, palm shells, coconut shells, and wood processing waste, converting waste materials into valuable energy while minimizing environmental impact.
Power Generation: Converts thermal energy from biomass combustion into steam to drive turbine generators for electricity production, reducing dependence on fossil fuels through biomass power generation.
Environmental Benefits: Clean combustion process generates minimal exhaust gas and emissions with reduced environmental impact compared to traditional coal boilers, significantly lowering greenhouse gas emissions and air pollution.

Specifications

Parameter	Value Range
Boiler Type	Water Tube Biomass Boiler
Evaporation Capacity	10 to 75 tons per hour
Steam Pressure	1.25 to 9.8 MPa
Steam Temperature	Up to 540 degree Celsius
Fuel Type	Biomass Coal Mixed Fuels
Grate Type	Chain Grate
Thermal Efficiency	Up to 85 percent
Manufacturing Standard	ASME EN GB

Key Advantages

High thermal efficiency reduces fuel consumption and operating costs
Wide fuel adaptability supports various biomass materials
Environmentally friendly operation with lower emissions
Strong structure ensures safe and stable performance
Large steam output meets industrial scale demands

Global Market Presence

As global industries transition toward sustainable energy solutions, demand for biomass boiler systems continues to grow. The SHL Series Assembly Water Tube Steam Boiler is extensively utilized across markets in Asia, Europe, Africa, Middle East, and South America. Its high efficiency, reliability, and eco-friendly performance make it an ideal choice for industrial steam generation. By implementing this advanced biomass boiler, enterprises can achieve enhanced energy efficiency, reduced environmental impact, and long-term economic benefits in the global marketplace.
